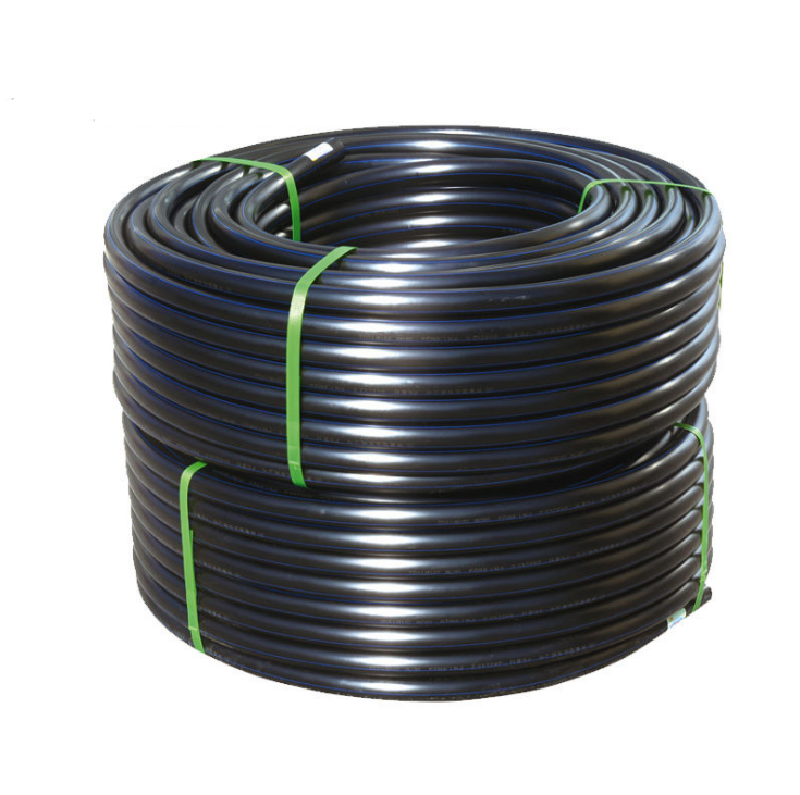

HDPE PIPE

Availability:
Quantity:

HDPE water supply pipe use PE110 or PE80  as raw materials, processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings can be employed melt socket connection,  Butt and fused connection,to insure the pipe system safety and reliability as well as low construction cost.

--HDPE pipes  Introduction--
1) Material:PE100/PE80                                   2) Standard:GB/T9001-2000

3) Certification:ISO9001:2008                          4) Package:Nuded packing

5) Connection:Butt fusion,socket joint ,electric connect

6) Color:black with blue stripe or customized

7) Pressure  rating:1.6Mpa,1.25Mpa,1.0Mpa,0.8Mpa,0.6Mpa

--Product Feature--

1) Non-toxic,No Leakage.                  5) Hygienic Safety

2) Smooth Surface                              6) Corrosion resistant.

3) Excellent Flexibility                         7) Recycle and environment-friendly

4) Easy Installation and Lower costs

--Product Specification--


External Diameter
Dn(mm)
HDPE PIPE(SDR13.6)
Thickness(mm) Weight(KG/M)
50 3.7 0.558
63 4.7 0.895
75 5.6 1.265
90 6.7 1.82
110 8.1 2.69
125 9.2 3.43
140 10.3 4.22
160 11.8 5.67
200 14.7 8.81
225 16.6 11.15
250 18.4 14.07
280 20.6 16.8
315 23.2 22.38


--Applications--

1) Municipal water supply, gas supply and agriculture etc.

2) Commercial & Residential water supply

3) Industrial liquids transportation

4) Sewage treatment

5) Food and chemical industry

7) Replacement of cement pipes and steel pipes

8) Argillaceous silt, mud transportation

9) Garden green pipe networks

--Product Installation--

Mainly connection ways
1)  Dn≤110mm,Use hot melt socket connection or fused connection
     Dn≥110mm,Use butt fusion connection or fused connention

2)  Connection with metal pipe and metal fittings ,can connected by flange connection
