Rope Sheave

Availability:
Quantity:

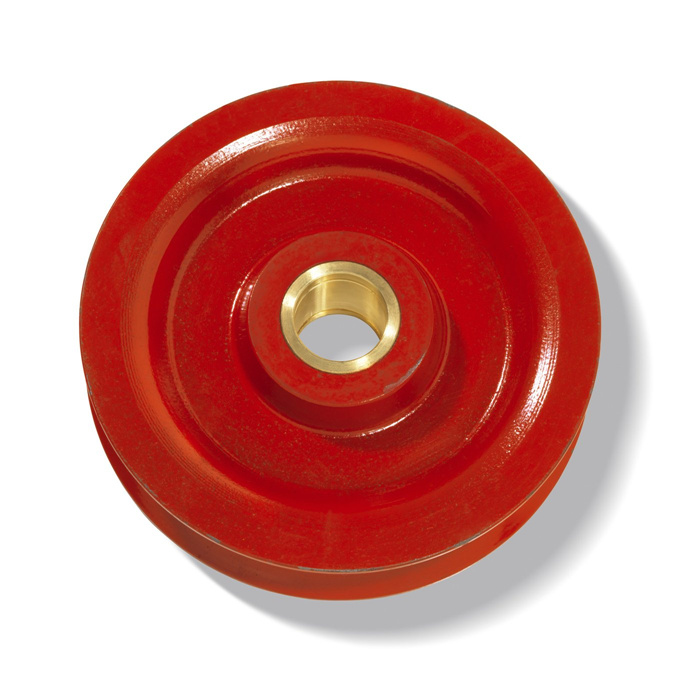

Rope Pulley / Sheave manufactured from Cast Iron available in various diameters to suit rope from 3mm up to 20mm

Maintenance-free design for manual and motor operation.

Capacities from 125kg through to 3200kg

3mm ø to 20mm ø wire rope

Normal tolerance according to DIN 620) bearing seals and pulley material EN-GJL-250 (GG 25)

Model Number

Rope Ø [mm]

180° [kg]

90° [kg]

Øa

Øb

Øc

Ød

e

f

kg

WZ 11 K

4 to 5

125

180

120

100

55

17

18

35

0.9

WZ 12 K

5 to 6

250

320

150

125

60

20

22

41.5

1.5

WZ 12,5 K

6 to 8

500

375

190

160

74

25

27

34

2.6

WZ 13 K

8 to 10

500

630

235

200

85

30

32

37

4.5

WZ 13,5 K

10 to 12

750

1000

280

240

100

35

36

62

6.8

WZ 14 K

12 to 14

1000

1250

325

280

120

40

41

70

10.9

WZ 15 K

14 to 16

1600

2000

375

320

150

60

50

85

16.5

WZ 16 K

16 to 20

2500

3200

 470

400

160

60

58

90

34.7
